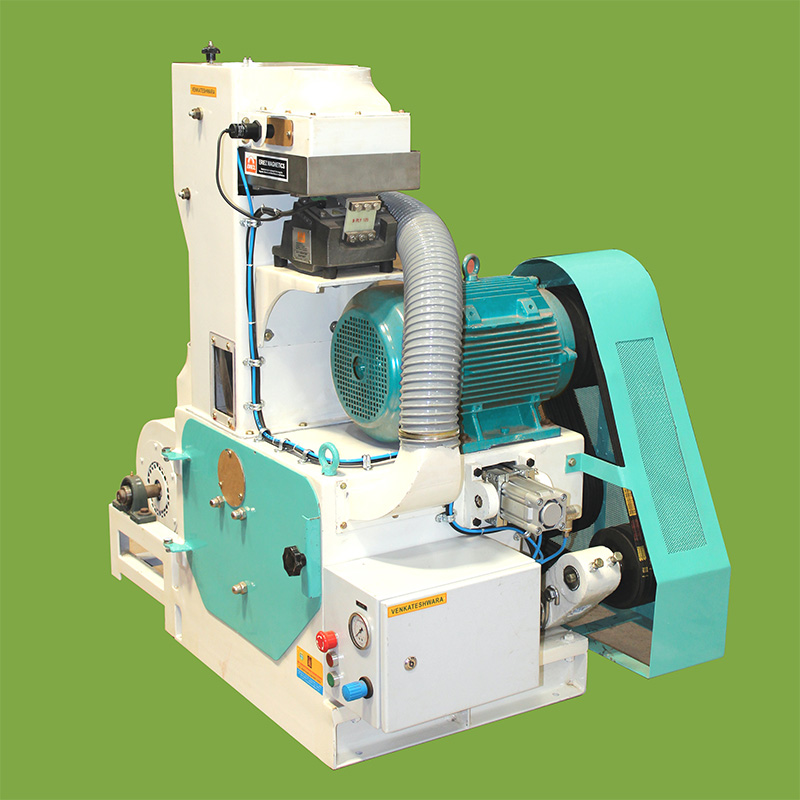

Vibro Pneumatic Rubber Sheller

Vibro Pneumatic Rubber Sheller

Pneumatic Rubber Sheller is designed to remove husk from all kinds of paddy. This machine comes with heavy- sturdy construction and suitable for raw, steam and boiled paddy. This machine makes very low noise while shelling of paddy

This machine comes with high technology vibro- feeder to feed the paddy grains at required angle into the paddy threshing rollers. This machine is equipped with cooling system to increase the life of paddy threshing rollers. This machine is designed to control shutter and rubber movements automatically thus when paddy flow is stopped, rubber rolls are disengaged to increase the life of rubber rolls.

CODE No PRODUCT
NAME
CAPACITY
ON PADDY
POWER RECOMMENDED DIMENTIONS APPROXIMATE
L B H
PRS3 PNEUMATIC
SHELLER
3 TON / hr 10 HP / 960 RPM 1420mm 965mm 1370mm
PRS4 PNEUMATIC
SHELLER
4 TON / hr 12.5 HP / 960 RPM 1420mm 965mm 1370mm
PRS5 PNEUMATIC
SHELLER
5 TON / hr 15 HP / 960 RPM 1420mm 965mm 1420mm
PRS6 PNEUMATIC
SHELLER
6 TON / hr 15 HP / 960 RPM 1420mm 1020mm 1470mm
