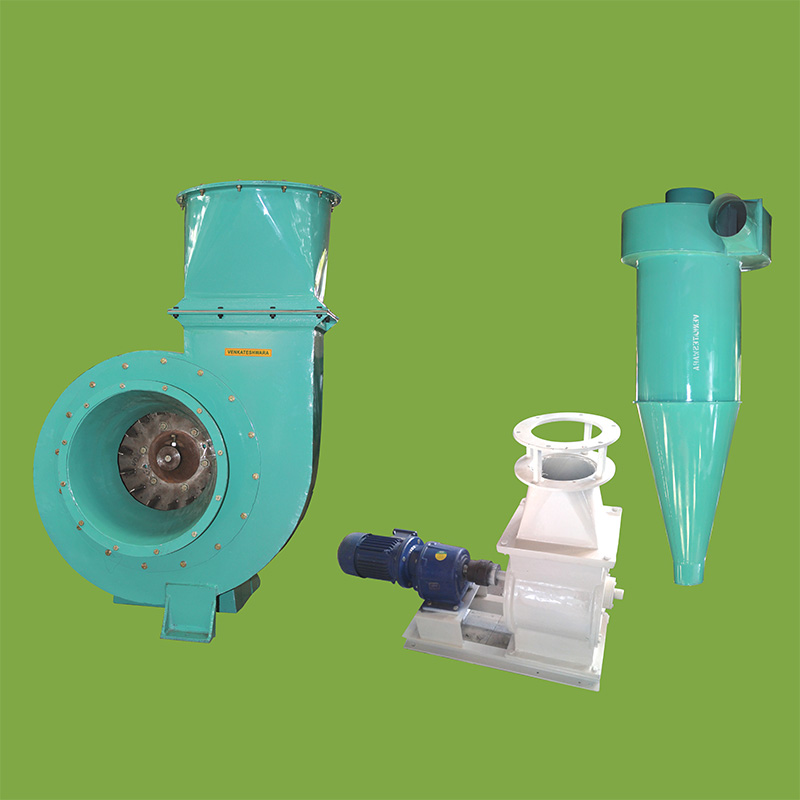

AIRLOCK BLOWER CYCLONE
Air lock, Blower, Cyclone system is used for collect the bran from the whitener, silky or cone polisher and separates the minute brokens from the bran.
| CODE No | PRODUCT NAME |
CAPACITY ON PADDY |
POWER RECOMMENDED | DIMENTIONS APPROXIMATE | ||
|---|---|---|---|---|---|---|
| L | B | H | ||||
| BL7.5 | BLOWER | 7.5 HP / 3000 RPM | 560mm | 890mm | 1180mm | |
| BL 10 | BLOWER | 10 HP / 3000 RPM | 585mm | 915mm | 1180mm | |
| BL12.5 | BLOWER | 12.5 HP / 3000 RPM | 585mm | 915mm | 1180mm | |
| BL 15 | BLOWER | 15 HP / 3000 RPM | 740mm | 1020mm | 1270mm | |
| AL 1 | AIRLOCK | 1 HP / 1440 RPM | 840mm | 305mm | 510mm | |
| AL 2 | AIRLOCK | 2 HP / 1440 RPM | 1050mm | 380mm | 890mm | |
| CL 950 | CYCLONE | I 950mm | 2900mm | |||
| CL 1100 | CYCLONE | I 1100mm | 3300mm | |||
| CL 1300 | CYCLONE | I 1300mm | 4270mm | |||
